MR Series

Indoor lighting designed for uniform coverage across trays. High PAR and ePAR output, 120° distribution and sealed IP65 build.

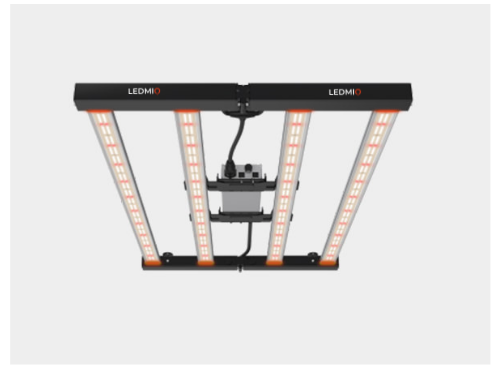

400 W modular toplight for efficient wide-area coverage.

800 W high-output module for tall crops and wider bays.

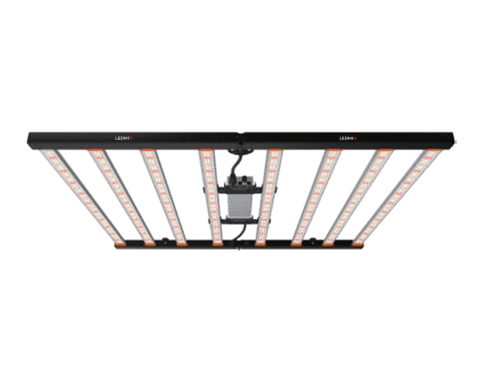

1000 W maximum-output module for the highest PPFD targets.

	MR 400	MR 800	MR 1000
Spectra (customizable on request)	BS / SS	BS / SS	BS / SS
Efficacy (µmol/J)	2.6	2.6	2.6
PAR Output (µmol/s)	1033	2080	2600
ePAR Output (µmol/s)	1056	2112	2640
Dimensions (L×W×H) mm	586 × 1033 × 62	1187 × 1033 × 62	1187 × 1033 × 62
Weight (Net)	4.74 kg	8.24 kg	10.4 kg
Weight (Gross)	6.9 kg	11.34 kg	13.3 kg
Power	400 W	800 W	1000 W
Voltage	100–240 V AC / 100–277 V AC	277–480 V AC	277–480 V AC
Beam Angle	120°	120°	120°
Dimming Control	0–10V	0–10V	0–10V
IP Rating	IP65	IP65	IP65
